Just recently i was requested by my friend to help convert a text document to an Excel sheet which could be understood easily. Firstly i could not directly open the file in Notepad Or Excel as it was not properly supported.
Later when i forced it open in Notepad, it was just massive strings of text with nothing to interpret. I wanted to know what the file format is. So .fa file format is
FASTA is a DNA and protein sequence alignment software package first described (as FASTP) by David J. Lipman and William R. Pearson in 1985.[1] Its legacy is the FASTA format which is now ubiquitous in bioinformatics. Source: Wikipedia
I had never encountered such file format and was excited to know something in DNA sequencing.
Google is the best tool to get the directions to a solution, i searched google with keywords to convert .fa file to excel. However I realised there was ni ready tool or technique to convert such file. Yes, you could manually edit each of 1500 lines and spend 2-3 hours to get it done without being sure of the accuracy.
While googling I stumbled upon a youtube video shows the same intended conversion in some Orange software. Initially i was not sure what software it is, but after switching to HD mode, i realised the software was Orange Canvas an open source data visualisation software, which you can download at http://orange.biolab.si/
These people had created a special widget to be added with orange canvas, It would convert the data from a fasta file to a usable, easily understood form in tabbed format.
Installing Orange was simple and I allowed whatever addon it asked for. Finally Orange setup was completed and the software was installed.

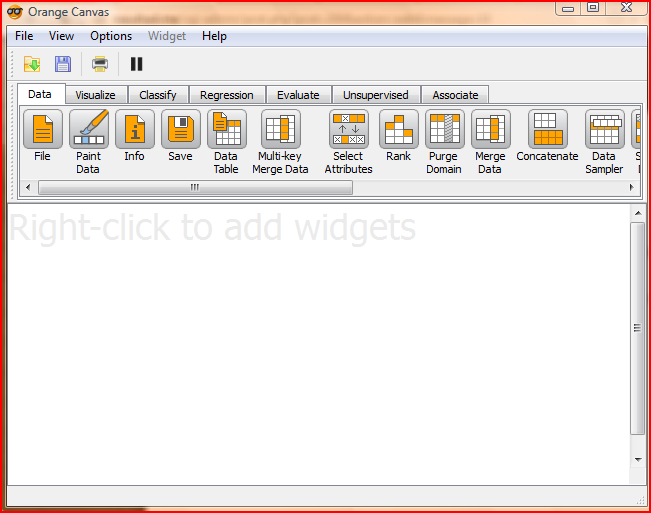

Following is a screen shot how orange installation looks.
Later i Downloaded (Download from: https://github.com/1withforce/FileEngage) the GitHub Project and moved files as per instructions on Readme.md file which said:
File widget with universal converter compatibility (formerly OrangeFasta) =========== V 1.0 =========== Orange file widget has built-in fasta converter. Icon needs to go in ~/.../orange/OrangeWidgets/Data/icons/ converterClass needs to go in ~/.../orange/OrangeWidgets OWFileEngage needs to go in ~/.../orange/OrangeWidgets/Data
How does this software work:
The white blank area which you see below the icons is the Canvas Area, similar to that of a painting canvas. The difference is only that you dont use water color Or brushes to paint :D. Just click on the desired icon and drag-drop it in the canvas.

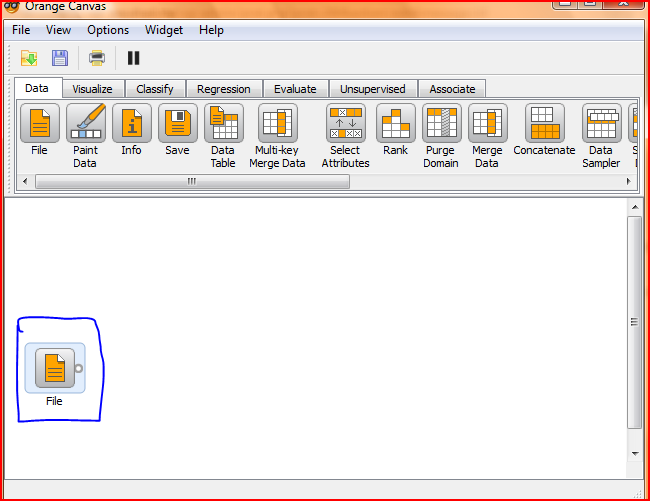

- First thing we need is: File
- Next we need to Load the Data file (which can be Fasta Or Other format)

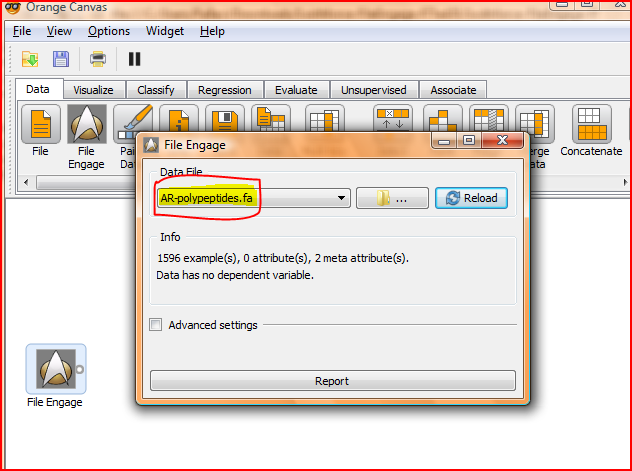

- Double click on the File Icon and a Pop-up will appear where we can select the file source to load the data

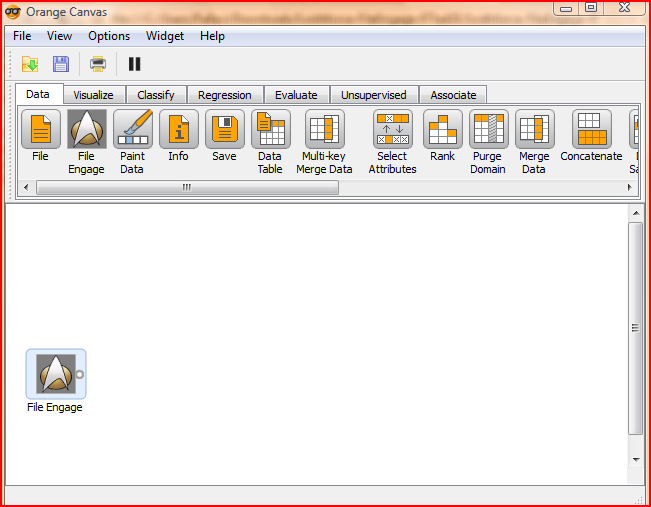

At this moment, the File Engage Widget prepared by those 2 guys was not added. Once added, we get a new icon called File Engage
Thats it, you are done.
